Low Profile Extending Jibs

SKU CPP5000756
UOM 1

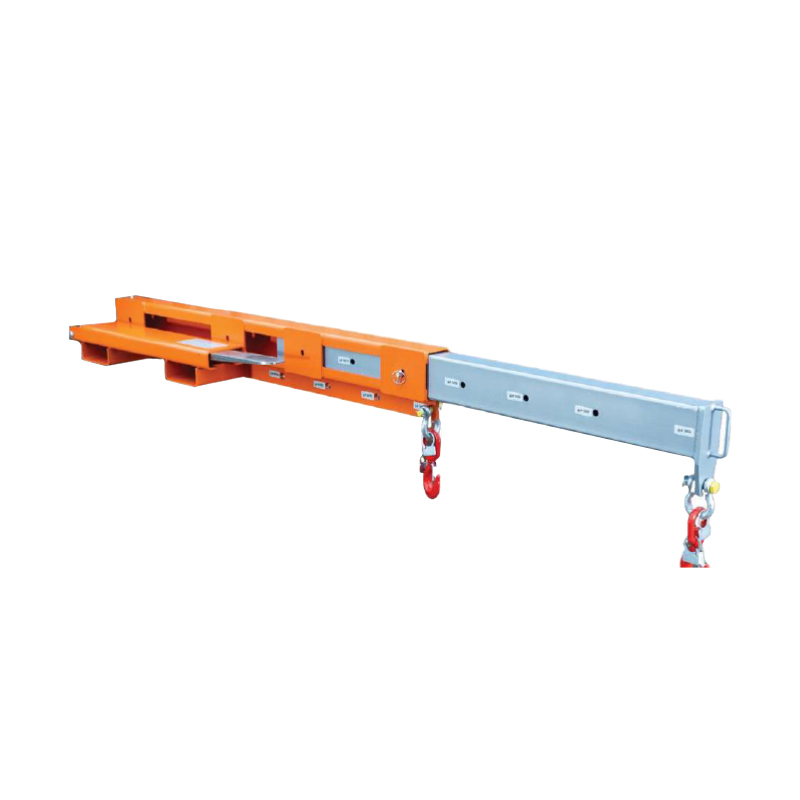

Low Profile Extending Jibs are forklift‑mounted lifting attachments that safely extend the lifting reach of a forklift while operating in low‑headroom environments. Their low‑profile design allows them to work beneath height restrictions such as mezzanine floors, doorways or overhead services, while the extending jib arm provides additional forward reach for precise load positioning.

  • Choice of 5 sizes
  • C of G 750-1010mm
  • 2 swivel hooks & bow shackles

Price £1,008.42

Included Products

Low Profile Extending Jib - 1500kg - 150kg

ILEP-1.5-OP

£1,049.58

Low Profile Extending Jib - 3000kg - 300kg

ILEP-3.0-OP

£1,128.96

Low Profile Extending Jib - 1000kg - 100kg

ILEP-1.0-OP

£1,008.42

Low Profile Extending Jib - 2000kg - 200kg

ILEP-2.0-OP

£1,090.74

Low Profile Extending Jib - 4000kg - 400kg

ILEP-4.0-OP

£1,187.76

Details

Low Profile Extending Jibs

Low Profile Extending Jibs are forklift attachments designed to safely lift, extend and position loads in areas with height restrictions or limited overhead clearance. They fit onto standard forklift forks and use an extending jib arm to provide additional reach while maintaining a compact, low‑profile design.

Ideal for warehouses, workshops, production areas, retail stockrooms and maintenance environments, mini lifter accessories allow one lifting solution to cover multiple applications efficiently and safely.

  • C of G 750-1010mm
  • 2 swivel hooks & bow shackles
  • Multi-hook positioning from 500-3000 load centres
  • Max. fork section 150 x50mm at 281mm centres
  • Zinc plated heel pins for safe attachment to trucks
  • Choice of 5 sizes
    • ILEP-1.0-OP - 750-1010mm C of G - 1000 -100 capacity range (kg) at 500-300mm centres
    • ILEP-1.5-OP - 750-1010mm C of G - 1500 -150 capacity range (kg) at 500-300mm centres
    • ILEP-2.0-OP - 750-1010mm C of G - 2000 -200 capacity range (kg) at 500-300mm centres
    • ILEP-3.0-OP - 750-1010mm C of G - 3000 -300 capacity range (kg) at 500-300mm centres
    • ILEP-4.0-OP - 750-1010mm C of G - 4000 -400 capacity range (kg) at 500-300mm centres
